SDE-X Series

Designed for Energy Savings

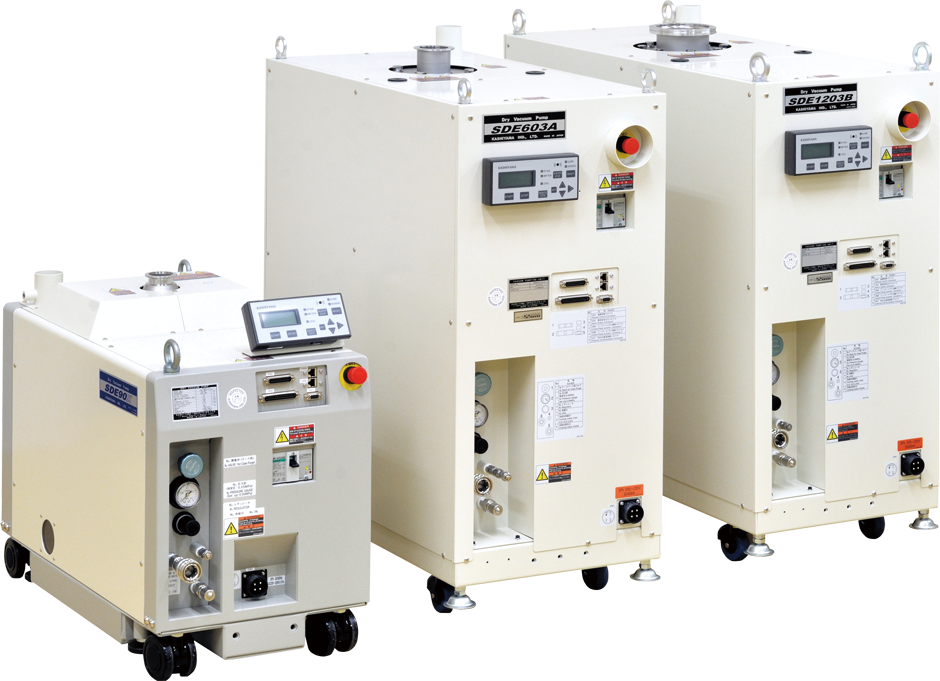

SDE-X Series

SDE-X Series

The SDE-X Series by Kashiyama is designed for harsh duty applications. Additionally, a cutting edge screw rotor design reduces power consumption up to 66%.

SDE-X Series Features

  • Power consumption; 1.3kW (54% reduction against conventional type)
  • Durable to wide range of process by various settings
Major Products

Spec. / Products SDE90X SDE303X SDE603X SDE1203X SDE20M09X SDE30M09X
Max. pumping speed
[L/min] *2		 1,300 5,000 10,000 20,000 30,000 45,000
Ultimate pressure
[Pa] *2		 1.3 0.5
Supply voltage
(50/60Hz)		 3Phase AC200～220V, 380～480V
Power consumption
[kW] *1		 1.3 1.5 1.6 2.0 2.6 2.8
Dimensions [mm] W*H*L *3 W:370
H:557
L:690		 W:400
H:905
L:760		 W:400
H:905
L:760		 W:400
H:905
L:900		 W:460
H:960
L:900		 W:500
H:960
L:1020

*1) Approx. value at ultimate pressure. *2) Without N2 purge. *3) Package size. Dimensions vary by specification.

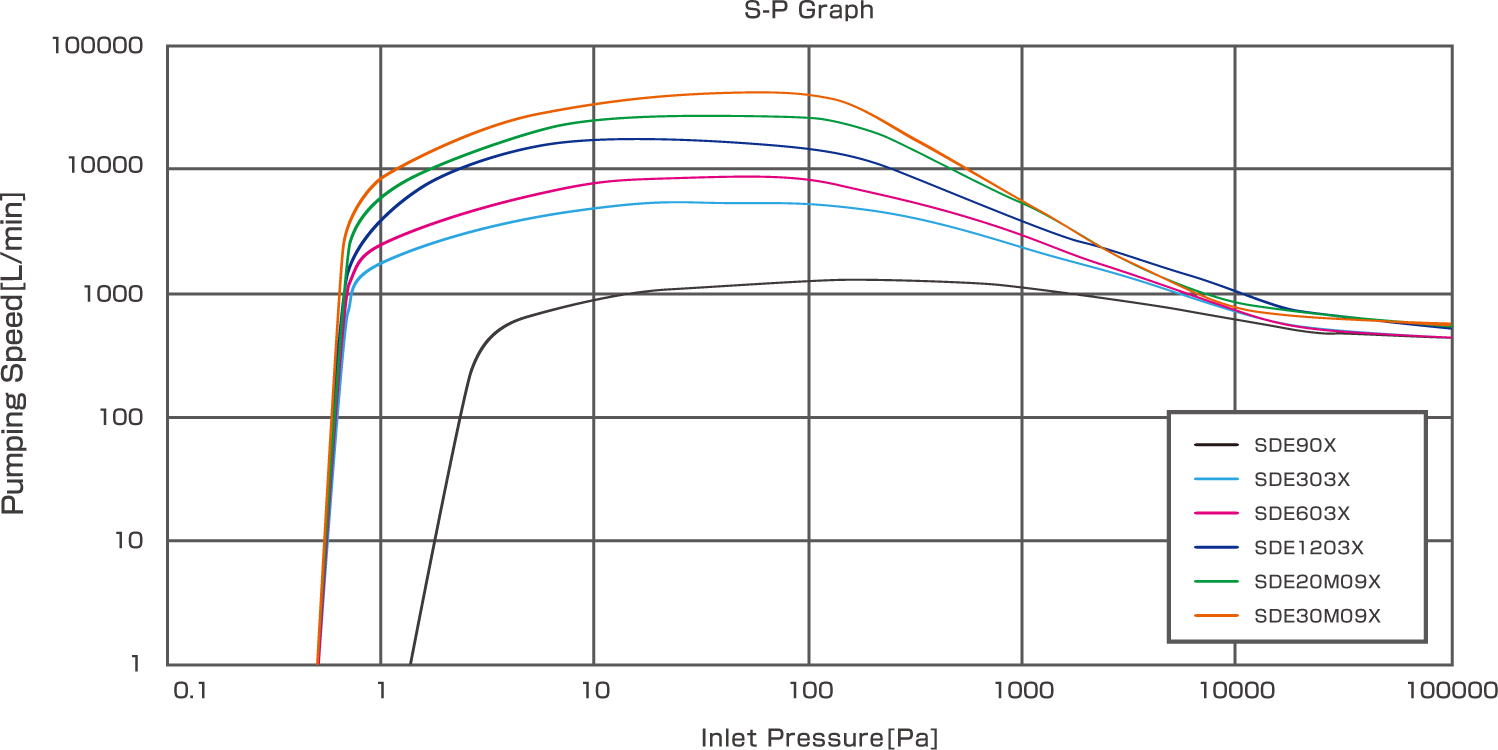

S-P Curve

SDE-X Series Graph
